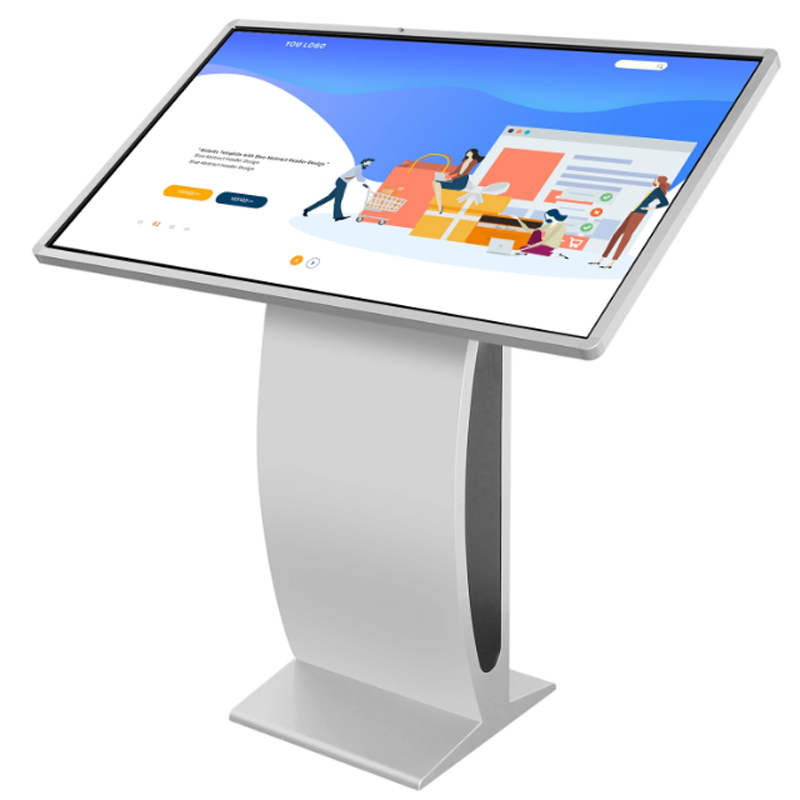

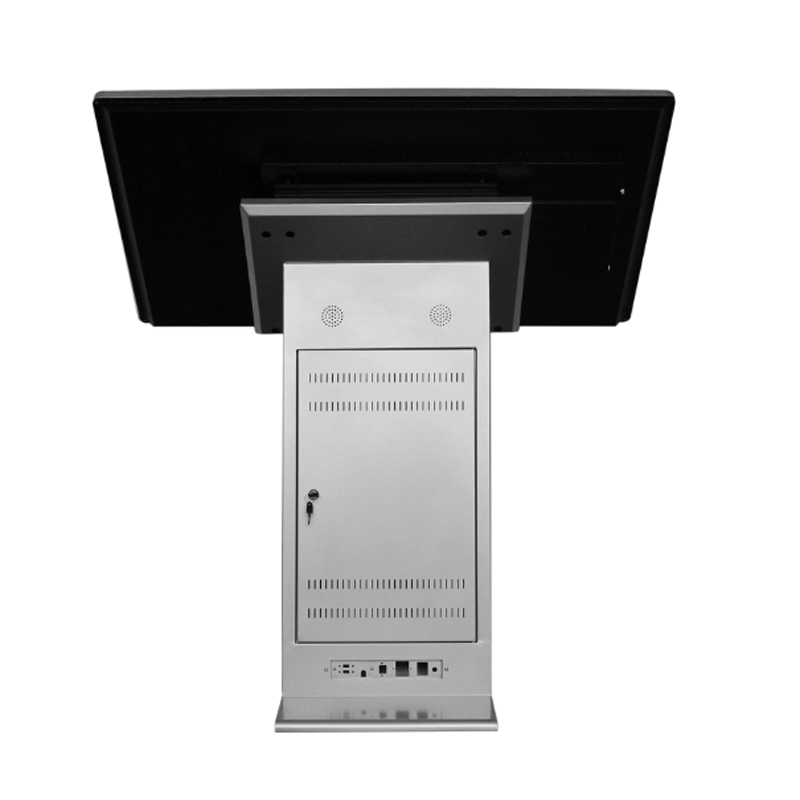

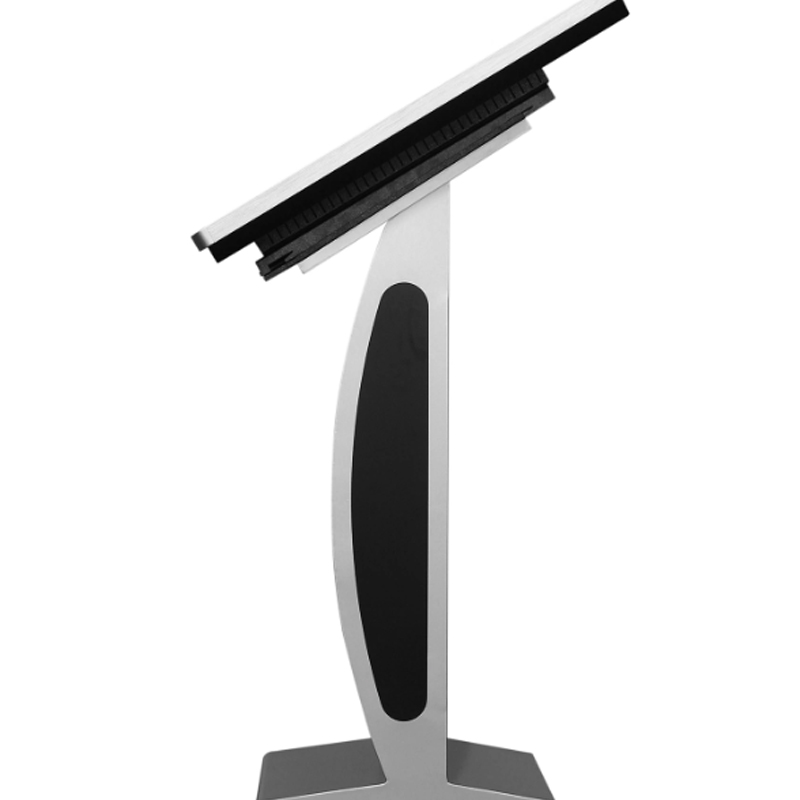

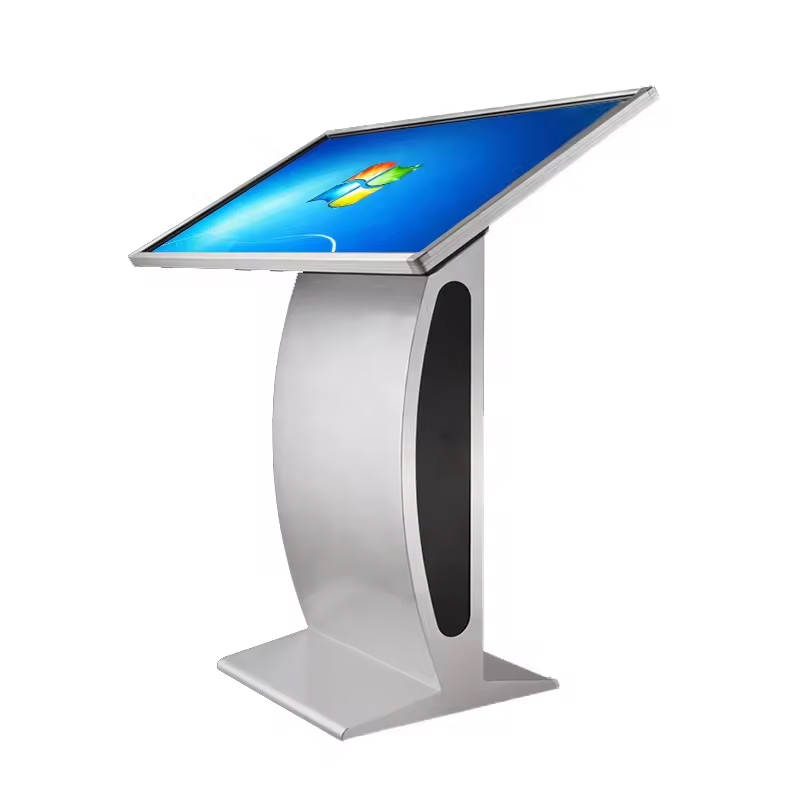

43“49”55 Smart Interactive B Shape Touch screen -DST43/49/55-B
Introduction
| •High definition IPS large screen UHD anti-glare display for vivid images |
| •Ten point touch rapid response Multiplayer Interaction |
| •High-permeability tempered glass,Anti-scratch,Anti-knock |
- Overview
- Specification
| •High definition IPS large screen UHD anti-glare display for vivid images |
| •Ten point touch rapid response Multiplayer Interaction |
| •High-permeability tempered glass,Anti-scratch,Anti-knock |
| LCD | Size | 43” | 49” | 55” | |
| Brand | BOE | BOE | BOE | ||
| LCD type | TFT -- LCD+ LED backlight | TFT -- LCD+ LED backlight | TFT -- LCD+ LED backlight | ||
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 | ||
| brightlness | 350cd/m² | 350cd/m² | 350cd/m² | ||
| Touch panel | CTP | CTP | CTP | CTP | |
| Main board | OS |
win10 (android optional) |
win10 (android optional) |
win10 (android optional) |
|
| Chipset | I3 D3 | I3 D3 | I3 D3 | ||
| Storage | RAM 4G+ROM 128G | RAM 4G+ROM 128G | RAM 4G+ROM 128G | ||
| Internet connection | Wifi、BT, 3g/4g (optional) | Wifi、BT, 3g/4g (optional) | Wifi、BT, 3g/4g (optional) | ||
| Content playing mode |
internet realtime playing, online distance playing, local storage playing, U-disk storage playing |
internet realtime playing, online distance playing, local storage playing, U-disk storage playing |
internet realtime playing, online distance playing, local storage playing, U-disk storage playing |
||
| Playing file format | Photo, TXT, Video, Audio | Photo, TXT, Video, Audio | Photo, TXT, Video, Audio | ||
| Speaker | 8Ω 10W *2 | 8Ω 10W *2 | 8Ω 10W *2 | ||
| Connection Port | RJ45*1 USB*2 HDMI*1 VGA*1 | RJ45*1 USB*2 HDMI*1 VGA*1 | RJ45*1 USB*2 HDMI*1 VGA*1 | ||
