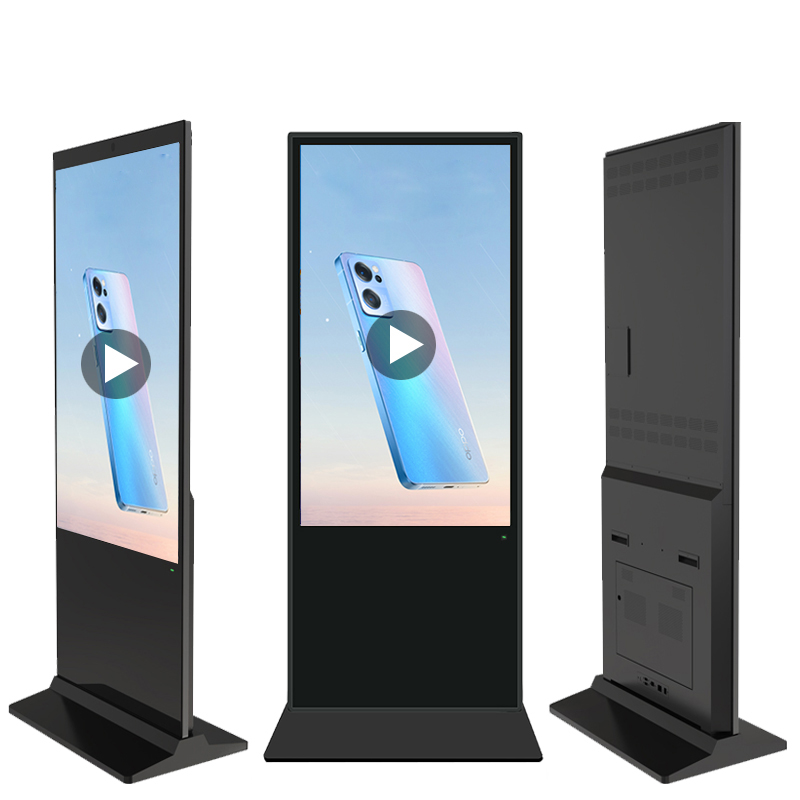

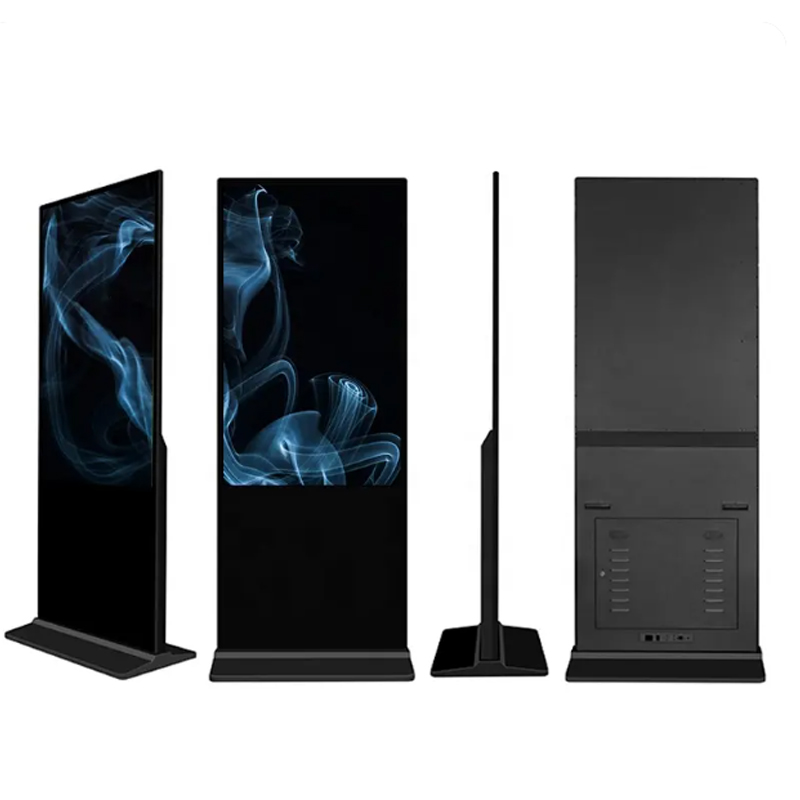

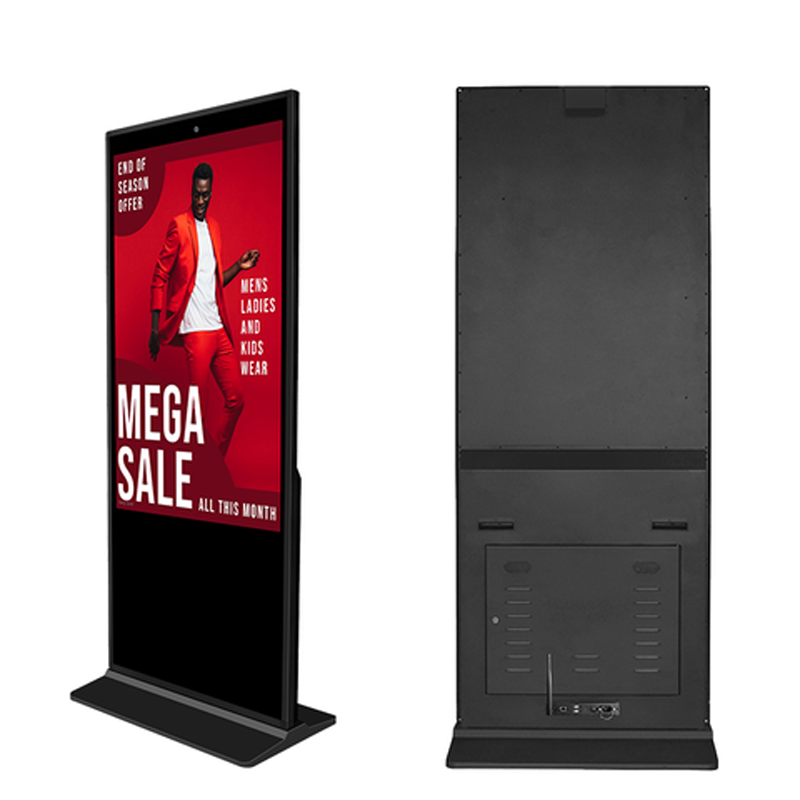

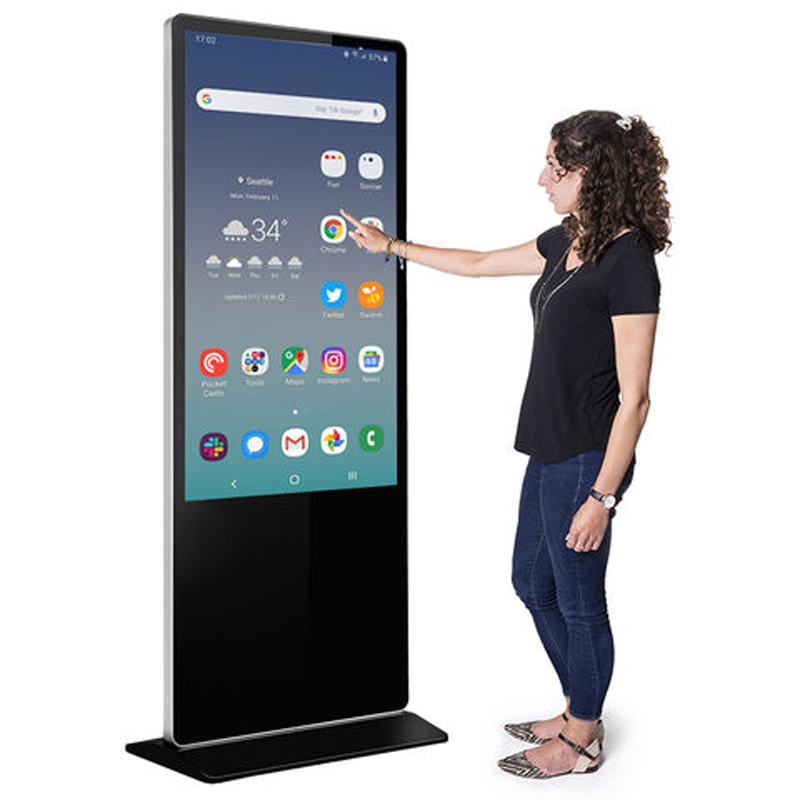

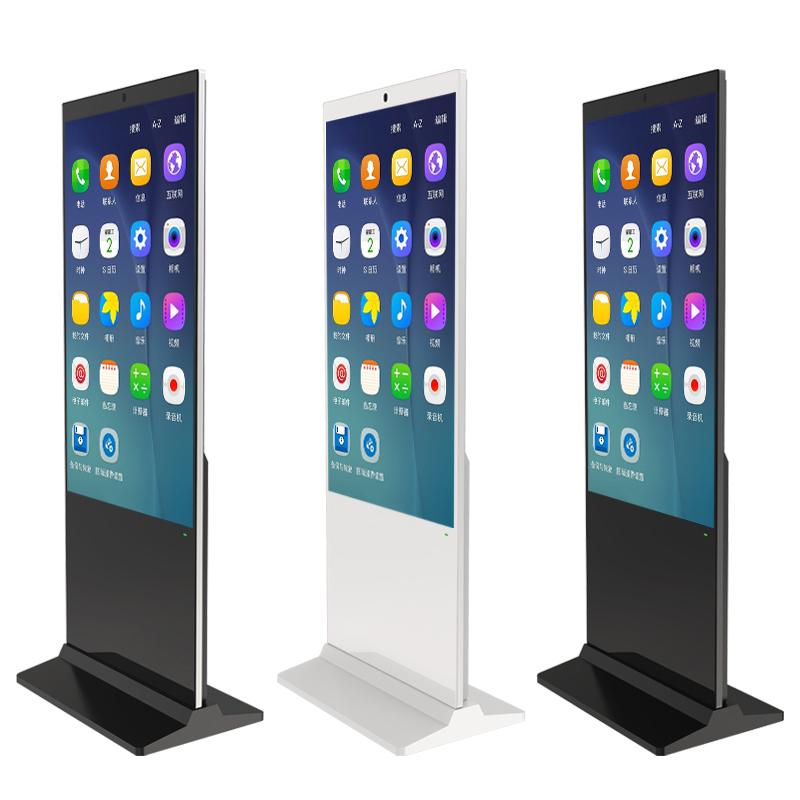

43"Smart Interactive Touch screen Kiosk -DSTK43
Introduction
•Safe interactions with germ-resistant screen•4K UHD anti-glare display for vividimages
•Display content in portrait or landscape
- Overview
- Specification
|
|
| •Durable multi-point touch screen。 | |
| •24/7 nonstop operation | |
| •Compatible with Omnitapps multi-touch software | |
| •Optimized portrait mode for diverse applications |
| Panel | |
| Screen size | 43“ |
| Panel type | VA |
| Active area | 940.89*529.25mm |
| Aspect ratio | 16:09 |
| Brightness without glass (typical) | 450 nits |
| Contrast ratio (typical) | 4500:01:00 |
| Color depth | 10-bit |
| Color gamut | 72% NTSC |
| Operation hours | 18 hours / 7 days |
| Orientation | Landscape and Portrait |
| Light life (typical) | 30,000 hrs |
| Glass | |
| Hardness | 9H tempered |
| Germ-resistant coating | Nano-ionic silver |
| Anti-glare coating | Yes |
| Touch screen | |
| Touch technology | Infrared touch |
| Touch points | up to 40 |
| Touch response time | < 5 ms |
| System | |
| CPU | A73 × 2 + A53 × 2 |
| GPU | Mali-G51MP2 |
| Memory | Storage | 3GB I 16GB |
| OS | Android 8.0 |
| Connectivity | |
| DisplayPort (in | out) | 1 × 1.2 | No |
| VGA (in | out) | 1 | 0 |
| 3.5 mm Line in (1) | PC Audio × 1 |
| 3.5 mm Line out | Earphone × 1 |
| SPDIF (in | out) | 0 | 1 (optical) |
| USB-A | 2 × 2.0 + 1 × 3.0 for OPS |
| Slot-in PC (OPS) | 1 |
| Ethernet LAN | 10 / 100 Mbps (Android) × 1 |
| Built-in peripherals | |
| Speaker | 2 × 12 W |
| Ambient light sensor | No |
| Power | |
| Power | AC 100-240V 50/60Hz |
| Standby power consumption | <0.5 W |
| Typical power consumption | 53 W |
| Environment | |
| Operating temperature | 0°C ~ 40°C |
| Storage temperature | -10°C ~ 60°C |
| Storage humidity | 10% ~ 80% RH Non-Condensing |
| Operating humidity | 20% ~ 90% RH non-condensing |
| Software | |
| Wireless screen sharing | InstaShare 1 (BenQ App Store) |
| Device management | DMS |
| Broadcast system | X-Sign Broadcast |
| Content management | X-Sign |
| Accessories | |
| Cables | 1 × VGA (1.5 m | 4.9 ft), 1 × HDMI (1.5m | 4.9 ft) |
| Remote control | 1 |
| Power cord | WW: × 8 (EU/UK/US/AU/TW/JP/IN/KSA) |
